Description

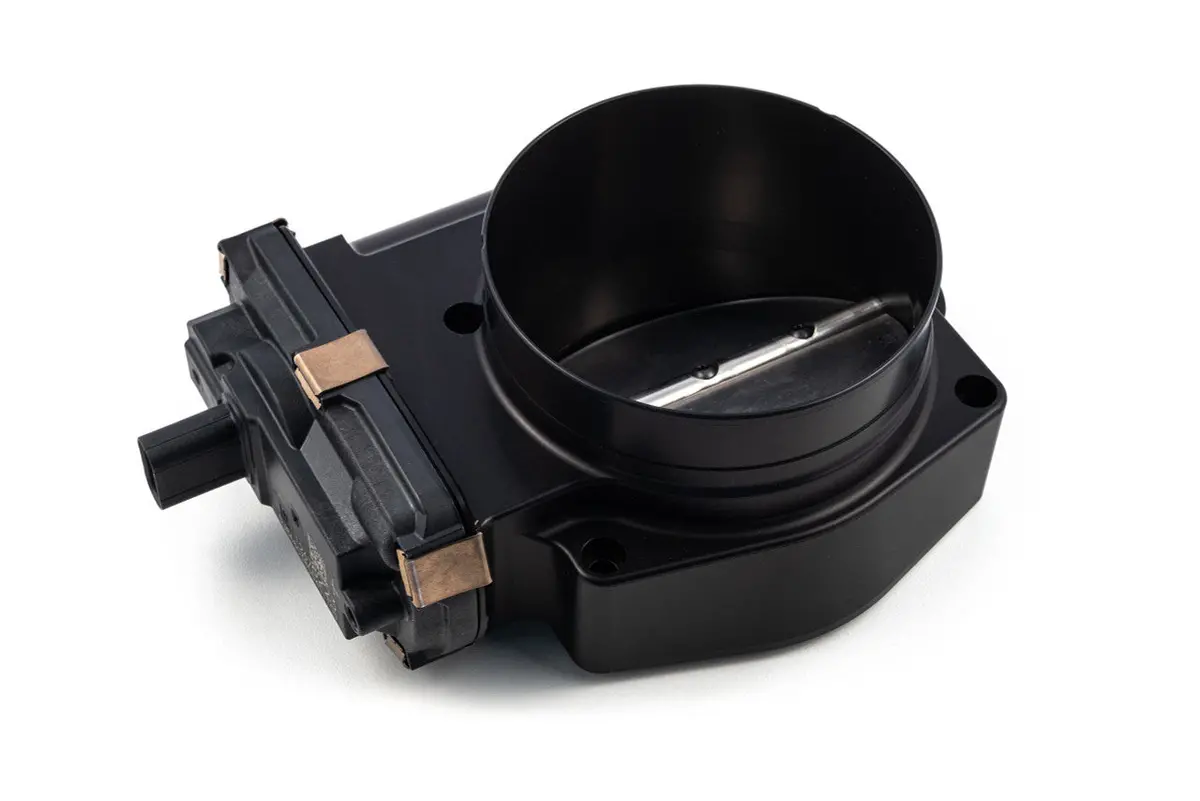

With a full 103 mm blade, the Nick Williams Gen 5 throttle body unlocks serious airflow potential for LT1 and LT4 performance builds. Cold air flows more freely, throttle response sharpens, and thanks to integrated electronics, control remains seamless. Finished in raw billet or black anodize, it brings a sleek look under the hood while laying the foundation for higher power. Calibration is required, but the result is a confident, precise drive-by-wire upgrade.
Fitment Notes
-
Intended for GM Gen V LT1 and LT4 engines (C7 Corvette, Gen 6 Camaro, etc.)
-
Requires an aftermarket intake manifold or a modified inlet; does not mount directly to stock manifold.
-
Not compatible with the factory LT1 intake in stock form
-
Engine calibration / tune is required after installation to function properly
Included
-
Billet aluminum throttle body housing (103 mm blade)
-
Drive-by-wire electronics and stepper motor
-
Gasket / O-ring seal
-
Mounting bolts and hardware
-
Installation instructions
Product Specs
-
Throttle blade size: 103 mm effective diameter
-
Inlet bore: approx 108 mm (4.25″) for smooth entry to the 103 mm blade
-
Connector: 6-pin GM style, compatible with late-model wiring harnesses
-
Finish options: raw billet (machine finish) or black anodized
-
Requires tuning to enable full range operation
Product Features
-
Maximized airflow: The oversize blade offers less restriction and supports higher power goals.
-
Precision CNC-milled: The inlet is machined on 5 axes for ideal flow geometry.
-
Fully integrated electronics: Comes with stepper motor and controller—no need to repurpose stock guts.
-
Aesthetic upgrade: Anodized or raw finish gives a premium look in the engine bay.
-
Tune-ready: Designed to work with calibration tools post-installation for safe and usable performance.
