Description
Transform your C6 Corvette’s hood into a functional performance asset with the Anderson Composites Type-WH Carbon Fiber Heat Extraction Hood. Built with lightweight 3K carbon fiber via vacuum infusion, this hood swaps in at ~18.4 lbs and improves both engine cooling and aero efficiency through integrated venting. The vented design helps purge under-hood heat while retaining sharp lines that complement the Corvette’s aggressive styling. Beyond looks, this hood reduces mass up front, contributing to sharper handling and a more responsive front end.
Fitment Notes
-
Fits Chevrolet Corvette C6 (2005–2013) models: Stingray, Z06, Grand Sport, 427, etc.
-
Mounts using factory hinge and latch locations; OEM hardware is to be transferred.
-
Hood pins are required (AeroCatch, Quic-Latch, etc.)—this hood does not support factory gas struts safely on its own.
-
Heat shield is recommended to protect inner structure and nearby components.
-
Minor adjustments or trimming of mounting tabs may be needed to ensure perfect alignment.
Included
-

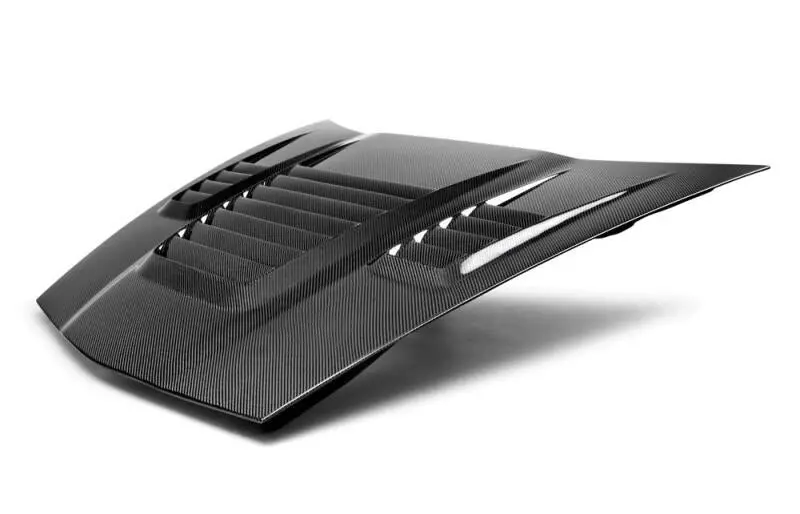

Carbon fiber vented hood (Type-WH)
-
Under-hood fiberglass skeleton (bonded) for reinforcement
-
(Note: OEM latch bracket, hood pins, and heat shield not included — must be supplied or transferred)
Product Specs
-
Construction: Vacuum-infused 3K 2×2 twill carbon fiber with marine-grade gel coat and UV inhibitors
-
Finish: High-gloss carbon surface for premium visual appeal
-
Weight: ~18.4 lbs (significantly lighter than stock steel or composite OEM hoods)
-
Venting: Integrated heat extraction vents to channel hot air out of engine bay, aiding cooling and reducing under-hood pressure
Product Features
-
Heat-extraction vents help purge hot air efficiently, improving cooling under load
-
Lightweight carbon construction reduces front-end mass, benefiting handling and response
-
Premium gloss carbon finish for high-end visual appeal directly from underhood
-
OEM-style mounting compatibility — fits factory hinges and latches (after transfers)
-
Lock-in stiffness with skeleton reinforcement — prevents flex without excess weight
-
Performance-forward style — gives your Corvette a race-inspired, aggressive look
